Permanent Magnet Synchronous Precision Drive Inverter TG600B-V0040G3

TG600B-V0040G3
1. Intelligent motor speed regulation: The inverter controls the speed of the motor by changing the frequency. The intelligent chip can realize automatic operation by calculation. At the same time, it can also change the direction of motor rotation to realize forward and reverse switching.
2. Prevent the motor from doubling its instantaneous starting current: The inverter has a built-in soft start function to prevent the motor from having an instantaneous starting current that is too large, effectively extending the motor's service life, while also saving energy and reducing the cost of use.
3. Energy saving and consumption reduction: The inverter automatically detects the load current, adjusts the output voltage, reduces energy consumption and energy-saving costs, and exerts an energy-saving effect.
4. Easy operation and humanized design.
5. Can be used in various heavy load occasions.
6. Maintain constant pressure and always keep the water pressure stable.

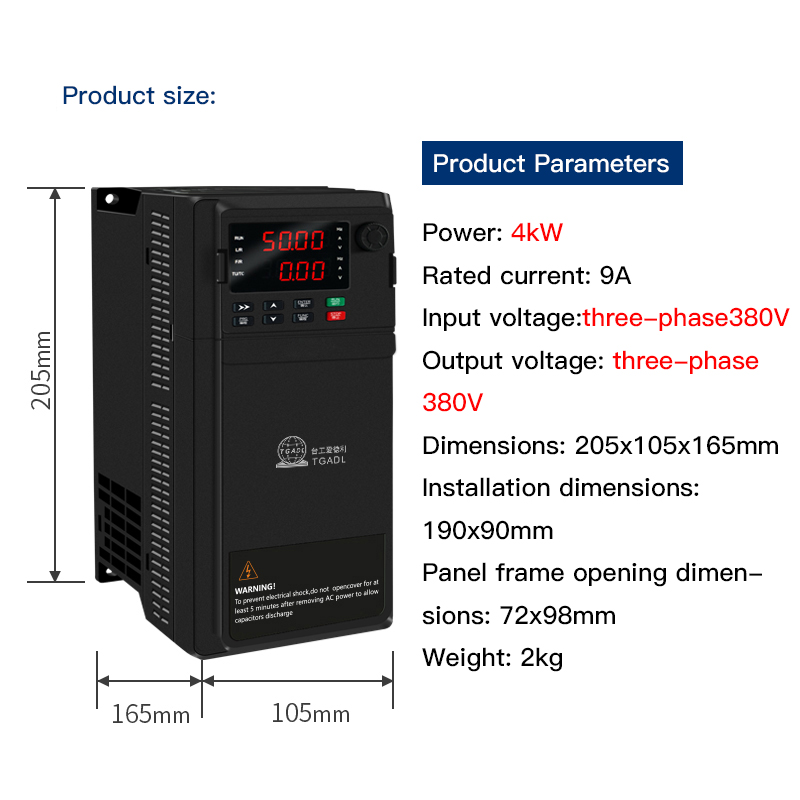

Power: 4kW
Rated current: 9A
Input voltage: three-phase 380V
Output voltage: three-phase 380V
Dimensions: 205x105x165mm
Installation dimensions: 190x90mm
Panel frame opening dimensions: 72x98mm
Weight: 2kg
×
